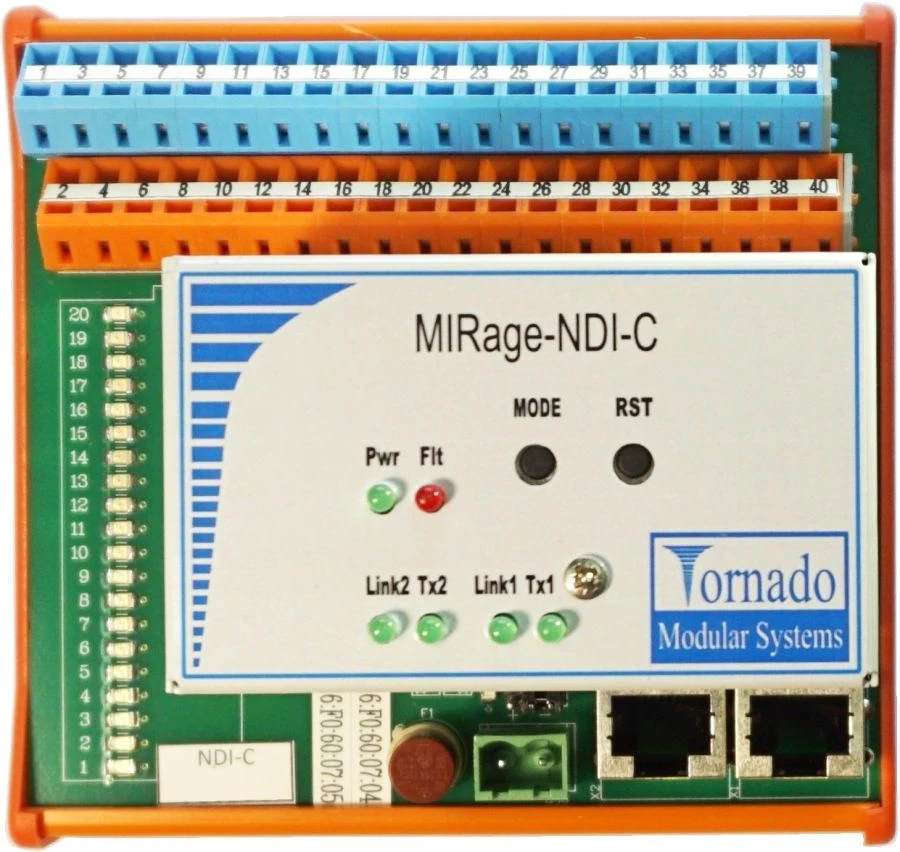

Discrete Input Device for 20 Signals 24V DC - MIRage-NDI-C

Available for Import

Discrete Input Device for 20 Signals 24V DC - Ideal for Sensor Integration

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices MIRage-NDI-C are designed for input of discrete signals from sensors type "dry contact" in the construction of distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transfer values through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDI-C devices have 20 discrete channels (DC). The "dry contacts" are powered from a 24 V source, which powers the device itself. DCs have a group galvanic isolation from the system part.MIRage-NDI-C devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Voltage at sensor contacts

24 V

Request response time at 100 Mbit network speed, no more than

Mechanical design

DIN rail mounting

Interface type

Ethernet 10/100BaseTX - 2 channels

Data transfer rate

Data exchange protocol

Modbus TCP/UDP slave

Galvanic insulation

Group

Overall dimensions

114x108x111 mm

Weight, not more

450 year

Wago terminal block, conductor cross-section up to

2.5 mm²

Operating temperature range

-25...70 °C

Consumption current, max.

170 mA

External supply voltage (+/- 15%)

24 V

Type of input signals

"Dry contact."

Number of discrete input channels

20 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
