Available for Import

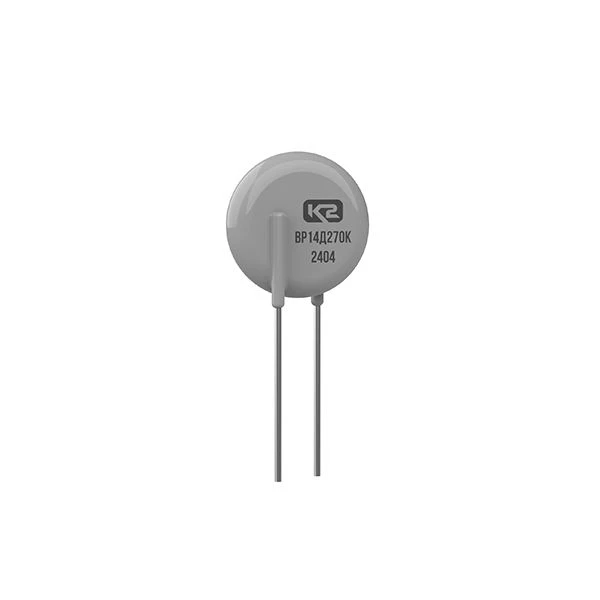

Disc Varistor VR14D270K for Surge Protection in Electronic Circuits

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR14D270K - varistor KVS series, 17 V, 1.0 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Maximum disk thickness

8 mm

Maximum disk diameter

17 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

4.9

Permissible amplitude of a single current pulse (8/20 µs)

1000 A

Maximum continuous operating voltage

22 V

Maximum AC operating voltage

17 V

Classification rated voltage at 1 mA current

27 V
