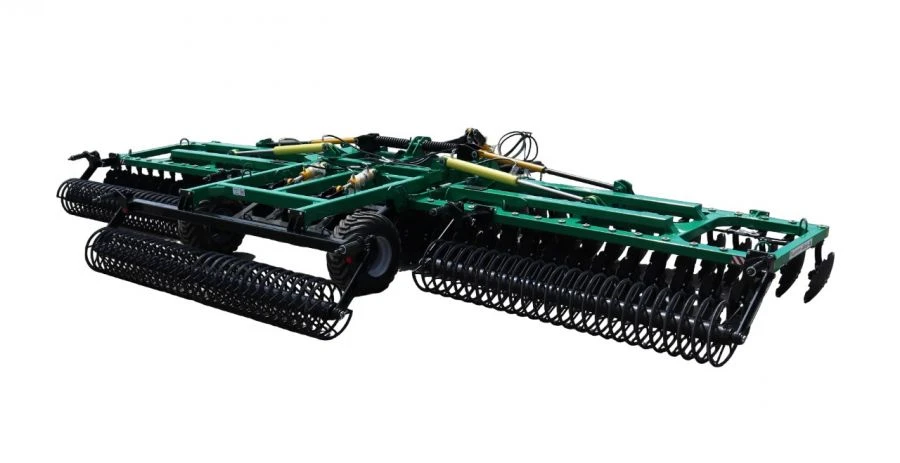

Disc Harrow BD 10.0x2PG with Roller for Effective Soil Tillage

Disc harrow BD 10,0x2PG with roller
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 280 mm, between the rows 1350 mm
Daisy disc 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wing clamping (copying the relief of the soil)
