High-Performance Directional Antenna 6 GHz 18 dB KP18-5850
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Directional Antenna 6 GHz KP18-5850 18 dB WiFi Available for Import

Directional Antenna 6 GHz KP18-5850 for Enhanced WiFi Connectivity

Antenna Equipment & Parts
Manufacturer: KROKS PLUS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

5.3 GHz KP18-5300 Directional Antenna, 18 dB WiFi Directional Antenna 6.2 GHz KP18-6150, 18 dB WiFi 6 dB WiFi KP6-2400/5000 panel antenna with WiFi2400 and WiFi5000 support

Description

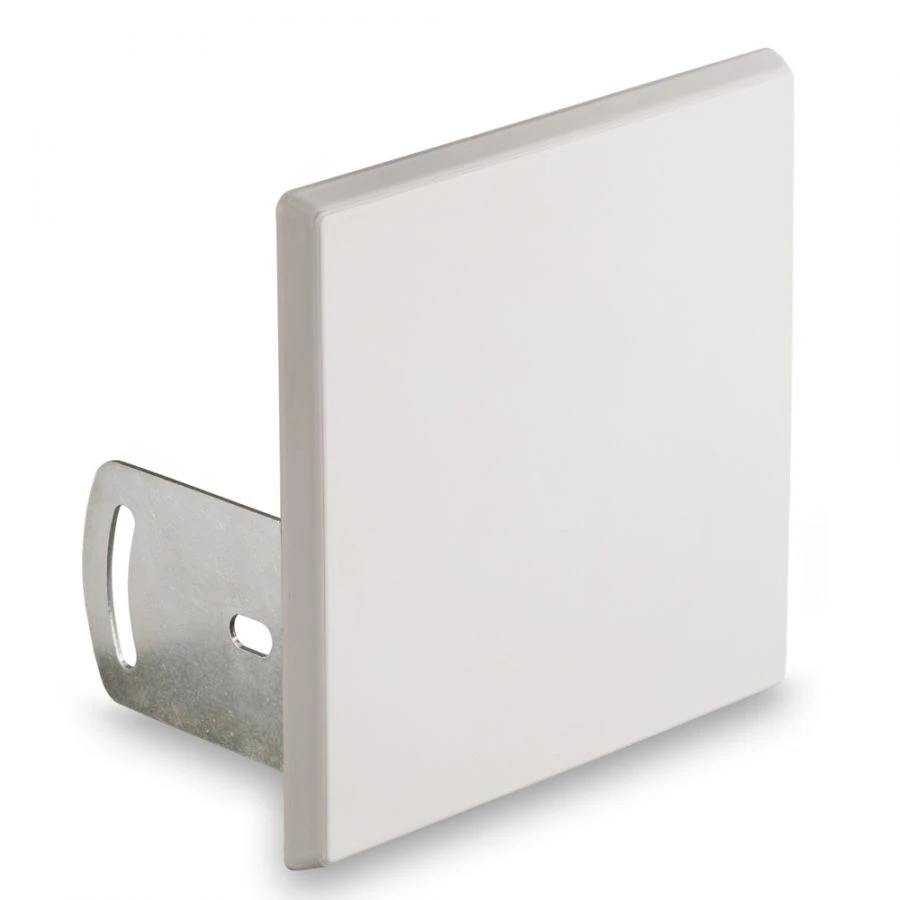

The KP18-5850 antenna is used in receiving and transmitting systems of the 5500-6200 MHz range. The antenna is designed for operation in Wi-Fi wireless computer networks of IEEE 802.11 a/h/n standards, as well as in signalling systems, radio communications, etc. Antenna KP18-5850 is made in a sealed housing, so it is weatherproof and can be used both indoors and outdoors. The direction of polarisation (vertical or horizontal) is selected during installation. The antenna is designed for installation on a mast or on the wall with a bracket KN-200 (not included)..

Specifications

Polarization
Vertical
Connector
N- female
Weight
1 kg
Minimum value of the operating radio frequency range
5500
Maximum value of the operating radio frequency range
6200
Gain factor
18
Standing wave coefficient (VSWR)
1.6
Input impedance
SBVVBG ohm
Maximum permissible power
10 W
Maximum wind load
108
MIMO support
no
Received signals
WiFi-5800
Type of execution
panel
Length
200 mm
Width
200 mm
Height
120 mm
Mark
Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
