Available for Import

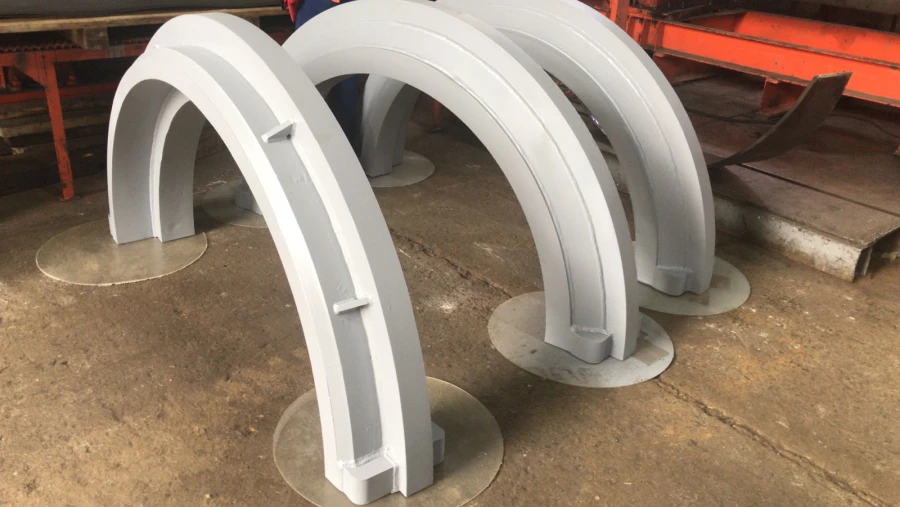

Diaphragm Sleeve PS.100.125.02.000 for Reliable Industrial Use
Bulk pricing available
FOB, CIF & EXW terms available
Description
The diaphragm collar is a welded construction from rolled billets with subsequent machining. It consists of an upper half and a lower half connected by fasteners. It is designed to be placed in the intracylinder space of CND of steam turbine K-100-90. The diaphragm shell provides the possibility of placing several diaphragms inside it, thus making up the stator part of the steam turbine CND. Diaphragm shell is made of non-alloyed carbon steel. Operating conditions: superheated water vapour with pressure up to 0,5 MPa, temperature up to 200??.
Specifications
Share your requirements for a quick response!
Delivery & Payment
Shipping Terms
Delivery Time
Payment Methods
