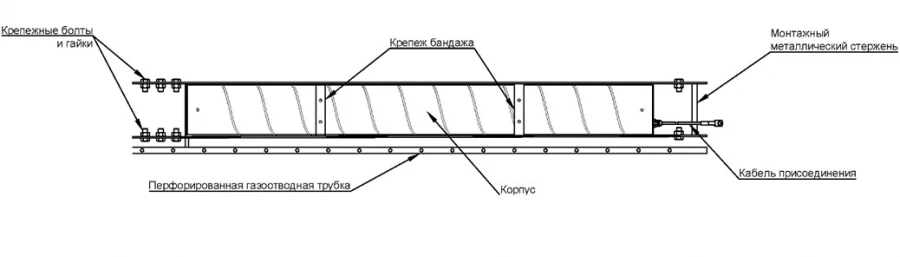

Depth Anode Grounding System AZ.PTM with Conductive Polymer Element GAZ.PTM Available for Import

Depth Anode Grounding System AZ.PTM for Electrochemical Protection Applications

Low-Voltage Electrical Panels
Manufacturer: PROMTEHMASTER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Anodic earthing electrode AZ.PTM deep with a working element made of conductive carbon-based polymer, complete type G

Description

Anode earthing devices AZ.PTM deep with a working element made of conductive graphite-filled polymer complete type GAZ.PTM.P1.K are designed for electrochemical protection systems as deep earthing of current-sinking circuits of cathodic protection against corrosion of steel and reinforced concrete structures in contact with soil, river and sea water and other electrolytic media. GAZ.PTM.P1.K are manufactured in accordance with industry standards of PJSC Gazprom organisation. Type of climatic execution O5, B5, in accordance with GOST 15150-69..

Specifications

Type
Anodic earthing electrode AZ.PTM deep with working element made of conductive graphite-filled polymer, complete type GAZ.PTM.P1.K
Climatic version
Type of climatic execution O5, B5, in accordance with GOST 15150-69.
Material
The working element of graphite-filled polymer is made of oil and gas resistant electrically conductive material. The mass fraction of electrically conductive filler should be not less than 40%
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
