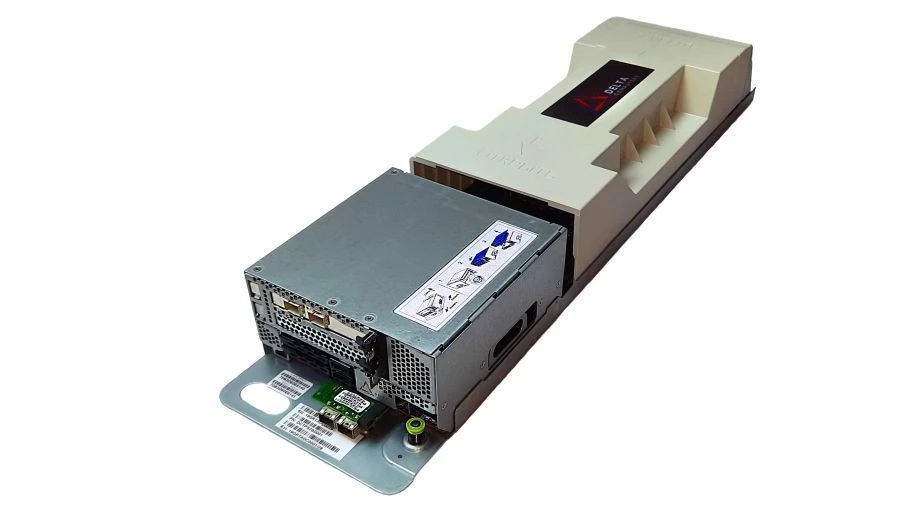

Delta Tioga Pass Server I22A2S0D02-01 (VRTG.467569.101-13)

Delta Tioga Pass Server I22A2S0D02-01 (VRTG.467569.101-13)

Brand: Delta Computers

$1,500 - $6,000 USD

MOQ: 1 pieces

Key Features

Processor family: Intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Rear panel I/O interfaces: PCIe x8 via AirMax - 2 pcs (optional)

Power supply: DC 12.2 V ± 0.4 V from the current busbar

Weight: 6.9...7.3 m² living area

Supplier Information

DELTA COMPUTERS LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from Delta Computers

Automated Workplace "Los" LSBBiH2OM270I

$600-$3,000

LCD Monitor "Sova" for Information Display, Model OM270I

$150-$420

Automated Workplace "Los" LSVRiH2OM238I

$360-$1,800

Universal PCIe Expansion Module Delta Sprut (VRTG.465277.001)

$3,000-$9,600

LCD Monitor "Sova" OM315I Model

$150-$420

Automated Workplace "Los" LSBBiH2OM238I

$900-$3,600

Unified Chassis for Computing Machines - DS-SSU-21-2210-2830-2RS

$450-$1,800

High-Performance Delta Tioga Pass Server I22A4S0D12-01

$1,500-$4,800

Delta Tioga Pass I22A6U0D00 Server for Computing Networks

$1,500-$4,800

Automated Workplace "Lynx" LSVRiH2OM190I

$360-$1,800

Personal Computer "Voron" DC-VOb

$450-$1,500

Automated Workplace "Los" LSVRiH2OM315I

$420-$1,800

Automated Workplace "Los" LSVRiH2OM270I

$450-$1,800

Functional Delta Tioga Pass I22A6S0D02 Server for Workstations

$1,500-$4,800

PCIe Retimer Card for Enhanced Server Functionality - Delta Retimer Gen3

$150-$540

Personal Computer "Beaver" DC-BOb

$420-$1,500

Owl LCD Monitor Model OM270I - High-Resolution Display

$150-$420

Universal Chassis for Compact Placement of IT and Telecom Equipment DS-SSU-21-2210-3000-2MU

$450-$1,800

Automated Workplace "Hawk" DC-YSBXYYY for Efficient Computing

$600-$3,000

LCD Monitor "Owl" Model OM270I

$110-$300

Description

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices.
The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace a damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Specifications

Processor family

Intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Power supply

DC 12.2 V ± 0.4 V from the current busbar

Weight

6.9...7.3 m² living area

Dimensions (W x L x H)

2OU, 174 mm x 880 mm x 89 mm

Testing interface

14-pin server debug card connector (front panel)

USB connectors

USB 2.0/3.0 - 1 pc, USB Type C - 1 pc.

Video interface

Mini VGA (front panel)

Platform management interface

IPMI via RJ-45 port (front panel)

Expansion card connectors (OCP)

Mezzanine OCP 2.0 card (a+b)

Storage subsystem (in the disk add-on)

Slots for 2 x 2.5" 7mm SATA SSDs

Storage subsystem (on motherboard) - optional

Slots for 2 M.2 NVMe x4 SSDs

Storage subsystem (on the motherboard)

Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD

Maximum RAM capacity

Up to 4096 GB (using 16 256 GB RAM modules)

Type of RAM

RDIMM/LRDIMM

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

DDR4

Number of RAM slots

16

Processor chipset

Intel® C621

Interface connection of processors

intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Processor connector

Two socket p LGA 3647 (socket p)

Number of cooling fans

2
