Available for Import

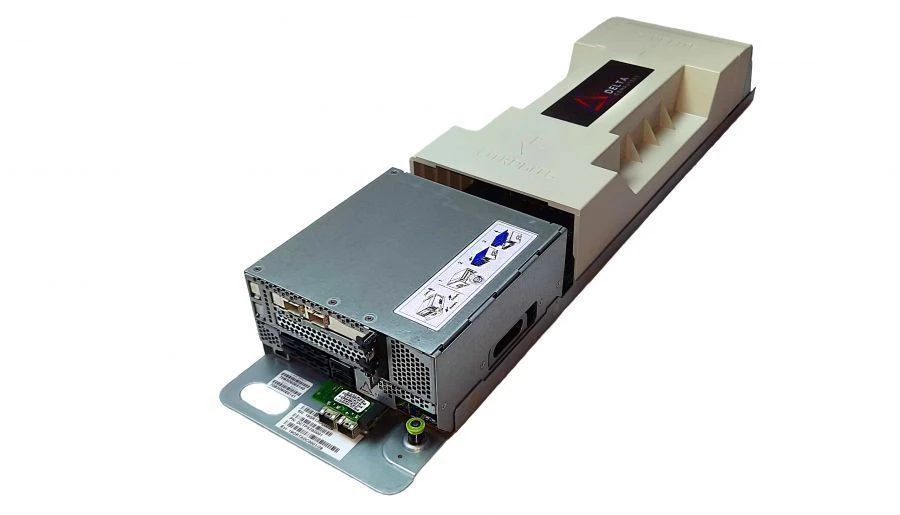

Delta Tioga Pass I22A4U1S01 Server for Efficient Network Services

Data Processing Systems

Manufacturer: DELTA COMPUTERS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Delta Tioga Pass I22A2S0D21 server (VRTG.467569.100KDDS.SKUTPBASE.1-06) Delta Tioga Pass Server I22A0D0D21 (VRTG.467569.100KDDS.SKUTPBASE.1-08) Delta Tioga Pass I22A2S0D02 server (VRTG.467569.100KDDS.SKUTPBASE.1-10) Delta Tioga Pass I22A6S0D20 server (VRTG.467569.100KDDS.SKUTPBASE.1-09) Delta Tioga Pass Server I22A4S0D21 (VRTG.467569.100KDDS.SKUTPBASE.1-07)

Delta Tioga Pass I22A8S0D01 server (VRTG.467569.100KDDS.SKUTPBASE.1-04) Delta Tioga Pass I22A2U0D21 server (VRTG.467569.100KDDS.SKUTPBASE.1-05) Delta Tioga Pass I22A8U2S00 server (VRTG.467569.100KDDS.SKUTPBASE.1-02) Delta Tioga Pass I22A10U0D00 server (VRTG.467569.100KDDS.SKUTPBASE.1-03)

Description

The product is a functional computing network device that provides services to workstations, personal computers or other functional devices. The server configuration is a high-performance computing device with data storage and processing function. The product design supports hot-swap function. This function allows you to replace a damaged node, without the need for a complete power failure of the server, which minimises disruption to the system.

Specifications

Number of RAM slots

Processor connector

Two socket p LGA 3647 (socket p)

Processor family

Intel® Xeon® Scalable processor / 2nd intel® Xeon® Scalable processor

Processor chipset

intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s.

Type of RAM

DDR4

RAM bus frequency

2400/2666/2933 MHz

Type of RAM

RDIMM/LRDIMM

Maximum RAM capacity

Up to 4096 GB (using 16 256 GB RAM modules)

Storage subsystem (on the motherboard)

Slots for 2 M.2 NVMe x4* SSDs

Expansion card connectors (OCP)

Mezzanine OCP 2.0 card (a+b)

Storage subsystem (on motherboard) - optional

Slot for installing 1 2.5" 7mm SATA solid state drive

Storage subsystem (in the disk add-on)

Slots for 4 2.5" U.2 7-15mm NVMe hot-swap SSDs

Platform management interface

IPMI via RJ-45 port (front panel)

Video interface

Mini VGA (front panel)

USB connectors

USB 2.0/3.0 - 1 pc, USB Type C - 1 pc

Testing interface

14-pin server debug card connector (front panel)

Number of cooling fans

Dimensions (W x L x H)

2OU, 174 mm x 880 mm x 89 mm

Weight

6.9...7.3 kg

Power supply

DC 12.2 V ± 0.4 V from the current busbar

Rear panel I/O interfaces

PCIe x8 via AirMax - 2 pcs (optional)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
