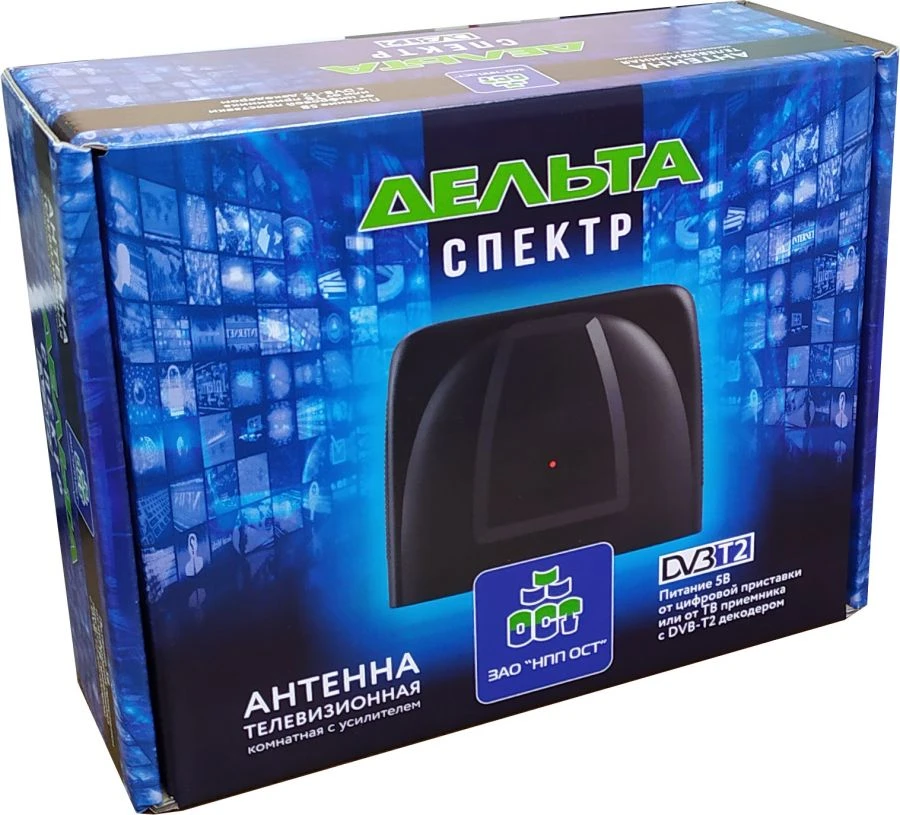

Delta SPECTR UHF Decimeter Range Antenna for DVB-T2 TV Reception

Designed to receive signals of analogue and digital broadcast television standard DVB-T2, transmitted with horizontal polarisation by ground stations in the range of decimetre waves (21-60 TV channels). The antenna is equipped with an in-built broadband amplifier, providing signal level increase and compensation of its attenuation in the antenna cable, improving reception of weak signals. Antennas are designed to operate in the temperature range from 5 to 35 ° C and the limit value of relative humidity of 80% at 25 ° C.

The antenna amplifier does not have its own source and is designed for 5 V power supply, fed through the antenna cable from the source built into the DVB-T2 digital set-top box. Current consumption of the amplifier is not more than 35 mA.
