Current Protection Relay RZT-1001 Available for Import

Current Protection Relay RZT-1001 for Effective Overcurrent Monitoring

Electrical Safety Devices
Manufacturer: VIBRATOR OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

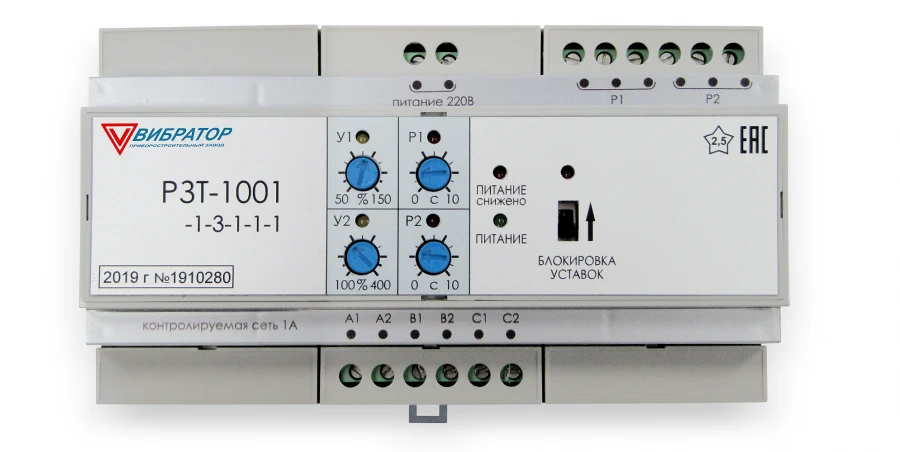

Current protection relay RZT-1001 is designed to signal the deviation of the average voltage value of the current in the controlled electrical network from the nominal value, exceeding the limits set by two setpoints. It is designed for operation in three-phase AC networks. Connection is carried out in the break of each phase of the controlled network in series with loads.

Frequency of the controlled network: 50 or 400 Hz; network voltage: 127, 220, 280, 400, 690 V; rated load current: 1 or 5 A; operating range of the controlled current 50 ... 400% of the nominal value. Power consumption 10 VA.

IP20; weight 0,6 kg, mounting on DIN-rail.

Specifications

Explosion protection type marking
no
Provides explosion protection of the type
no
Number of channels
1 pcs
Power supply voltage
690 V
Rated fuse melting current, mA
500
Operating temperature
0...10 °C
maximum operating current (max.
20 A
Dimensions
97...160
Operating voltage
690 V
Weight
6 kg
Warranty period of operation
5 year
Power consumption
10

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
