CPC505-01 Processor Module for Real-Time Control Applications

Mounted Circuit Boards

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

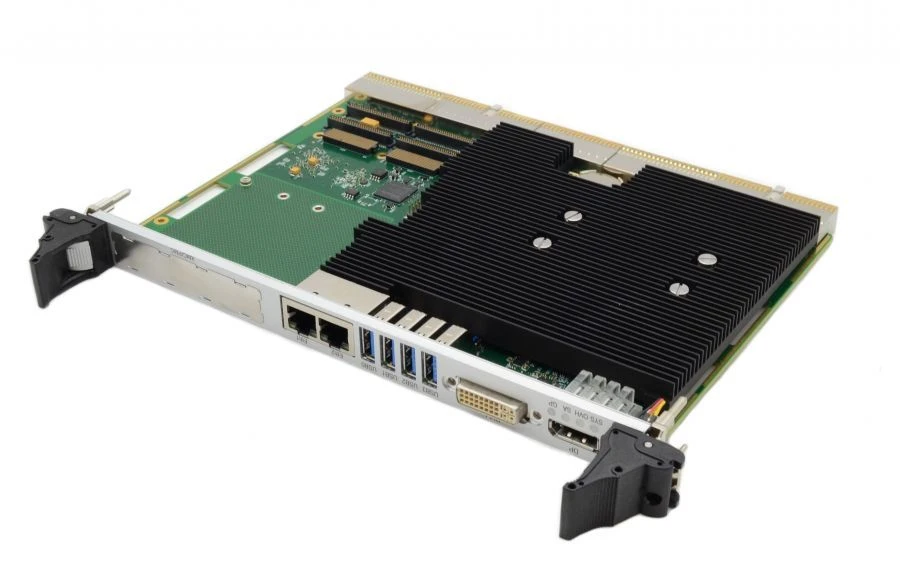

The CPC505 processor module is designed to provide customers with a highly integrated x86 platform solution in CompactPCI 6U format for real-time, production control, high-speed data acquisition and processing applications. The module is based on ninth generation Intel Xeon and Core processors with an integrated graphics core. The CPC505 uses the CM246 chipset, which has a modern set of interfaces, including PCI Express 3.0, SATA 3.0, USB 3.1, etc.

The graphics core integrated into the processor provides the module with great possibilities when working via DisplayPort, DVI-I, LVDS video interfaces. Up to 32 GB of DDR4 RAM with ECC can be installed on the module. The CPC505 supports a single 64-bit 66 MHz CompactPCI interface.

The board interfaces to the CompactPCI bus via an integrated PCI-E <-> PCI bridge.

Specifications

Temperature range of the module

From minus 40 to plus 85 C

Supply voltage and maximum current consumption

5 V +/-10%; 9 A; 3.3 V +/-10%; 3.6 A

Software compatibility with OS

Linux Debian 10; Astra Linux Special Edition, Release "Smolensk" v1.5, v1.6; Microsoft Windows 10 IoT Enterprise 64bit

XMC/PMC expansion card support

Supports a single PMC/XMC module; PCI-X 64 bit/133 MHz bus is brought out on P1-P4 PMC connectors (ANSI/VITA 39, PCI-X on PMC); PMC I/O P4 is brought out on RIO (PICMG 2.0); PCIe x8 Gen3 bus is brought out on P15 XMC connector (ANSI/VITA 42.3, XMC PCI Expr

Hardware monitor

Implemented via PECI/SMBUS interfaces; Monitoring of three power supply voltages; CPU temperature monitoring; PCB temperature monitoring

Watchdog timer

Internal with program control option

COM port

The COM0 port is routed to a connector on the board, if necessary, a plug with a D-SUB connector can be installed in the XMC mezzanine faceplate cutout. In this case, the XMC mezzanine cannot be used

Audio Support

The HD Audio interface is brought out on the P16 XMC and RIO connectors

Real Time Clock

Yes; Powered by CR2032 lithium battery (3 V)

USB ports

Support USB 2.0 (480 MB/s), USB 3.0 (5 GB/s), USB 3.1 (10 GB/s); Connect up to four devices via front panel connectors (USB 3.0); 2 USB 3.1 interfaces are brought out on P16 XMC connector; 6 USB 2.0 interfaces are brought out on RIO

2 LAN 10/100/1000/2500 Mbit ports on i225 controllers

Supports speeds up to 2.5 Gbps on Category 5e cable

4 10/100/1000 Mbps LAN ports on PCIe x4 Gen2

Two channels output to RIO connector; Two channels output to P16 XMC connector; Supports PICMG 2.16 standard; Uses Intel i350 server network adapter

SPI interface

FRAM support; Frequency up to 25 MHz

SATA interface

One interface is brought out on the P16 XMC connector; One interface is used to connect the integrated SSD; Two interfaces are brought out on the RIO

Support for M.2 2280 (PCIe x4 Gen3) drives

Armoured glass

Built-in SSD

32 GB capacity; SATA III 6 Gbps interface

FRAM memory

32 Kbytes; Implemented on the SPI bus

FLASH BIOS

2x128 MB SPI-Flash; Possibility of modification in the system

SMBUS bus

Compatible with 2.0 specification; Speed up to 100 kbps

PCIe bus

PCIe Gen3 (up to 8 GT/s) is brought out on the P15 XMC connector with support for devices up to x8; PCIe Gen2 (up to 5 GT/s) is brought out on the CPCI J3/P3 connector with support for devices up to x4; XMC is compatible with ANSI/VITA 42.3 specification

LPC bus

Output to P16 XMC connector; Output to RIO

PCI bus

Displayed on CompactPCI J1/J2 connectors; 64bit/66 MHz; Implemented on PCIe->PCI-X bridge PI7C9X130; HotSwap support; Work in peripheral slot (Non-transparent Bridge mode).

Video output

DVI-I interface (1920x1200@60 Hz) brought to the front panel; DisplayPort interface (4096x2304@60 Hz) brought to the front panel; DisplayPort interface (4096x2304@60 Hz) brought to RIO; LVDS interface (1920x1200@60 Hz) brought to RIO; Simultaneous operatio

RAM

32GB DDR4 SDRAM

Processor

Intel Xeon E-2276ML 2.0GHz 25W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
