Available for Import

Coordinate Drilling Machine 2A450AF10 for Precision Engineering Applications

Metal Boring Machines

Manufacturer:STAN-Samara CJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

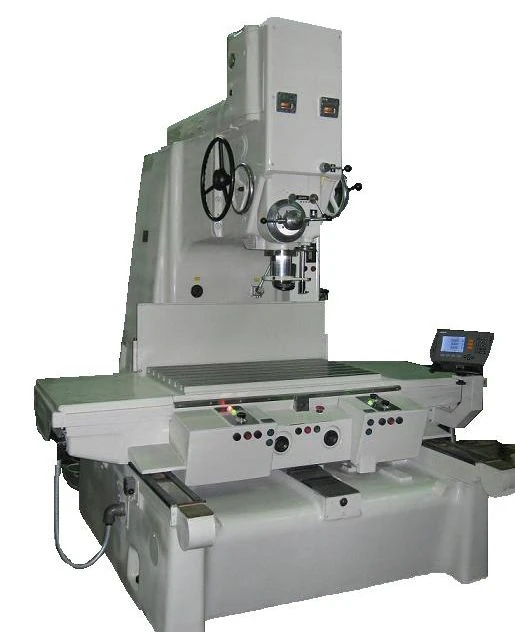

Coordinate boring machine 2A450AF10

Specifications

Type of product according to PP RF 616

Horizontal boring machines (universal, CNC, CNC)

Power consumption

4 kW

Weight

7300 kg

Type of equipment

Coordinate boring machines

Encoder type in X,Y axes

photoelectric

Type of SCI device

2 coordinate

Accelerated table and sled movement value

1200

Speed of working table movement

2.5-1000

Spindle speed limits

10-2000

Spindle cone

Special 5°.

Machine accuracy class

Machine dimensions, height

2710

Machine dimensions, width

2330

Machine dimensions, length

2560

Largest boring diameter

250

Largest drilling diameter in steel

Main motion drive power

Permissible weight of the work piece

600

Number of spindle speeds

Spindle outreach

710

Distance from the spindle face to the working surface of the table, the smallest.

250

Maximum stroke of the spindle sleeve

250

Distance from spindle end face to table working surface, greatest.

750

Groove width

Distance between slots

Number of T-slots

Maximum table movement, transverse

630

Maximum table travel, longitudinal

1000

Dimensions of the table working surface, width

630

Dimensions of the table working surface, length

1100

Weight of machine tool (without tools and accessories)

7300

Discreteness of X, Y coordinates readout

0.001

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
