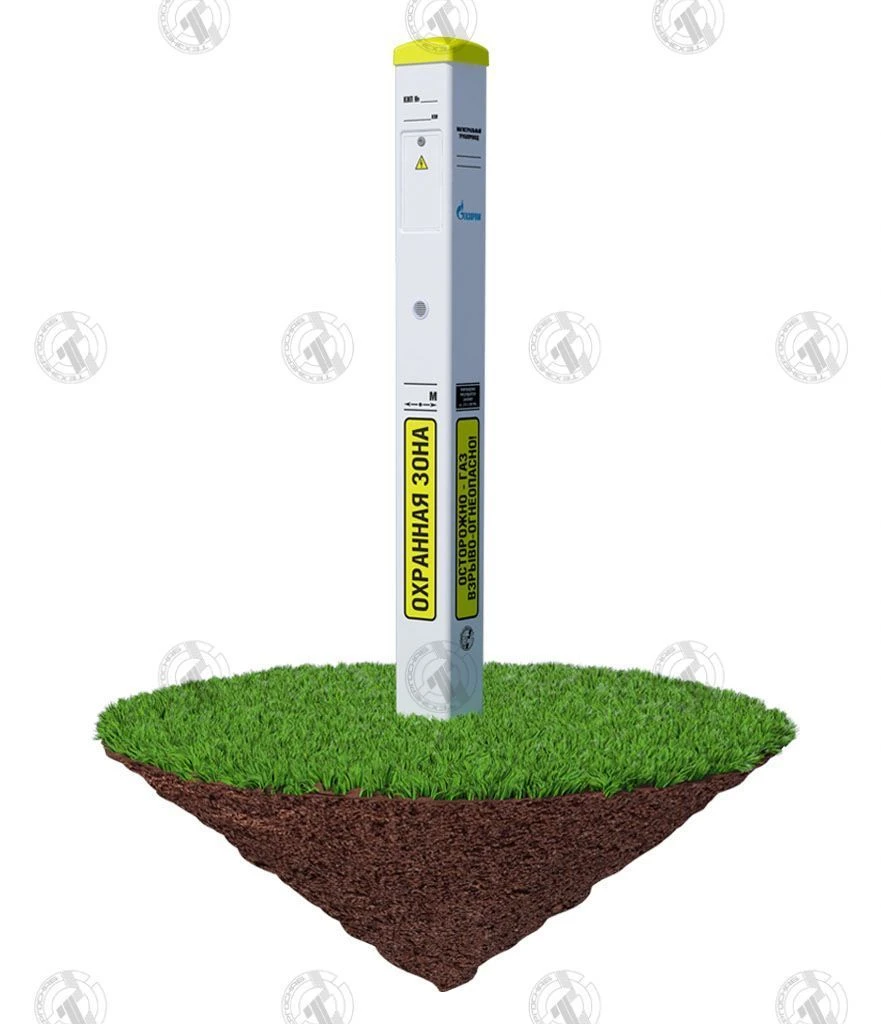

Control and Measurement Stations KIP-TES Type-1 for Corrosion Protection Applications

Control and measuring points KIP-TPP are designed for use in corrosion protection systems to mark pipeline routes, as well as for control and adjustment of electrochemical protection parameters. Type-1 instrumentation and control panels can be equipped with additional devices of the corrosion protection system (joint protection unit (JPU), pipeline protection device (PPD), anode grounding current control device (ACCD), corrosion monitoring device), kilometre sign (trace indicator), spare parts, other devices extending the functional purpose of instrumentation and control panels. KIP-TPP type-1 is a KIP buried in the ground above the underground structure, with a stand, which is an equilateral triangle in cross-section with a face width of 180 mm. Additional devices are placed inside the instrumentation rack.
