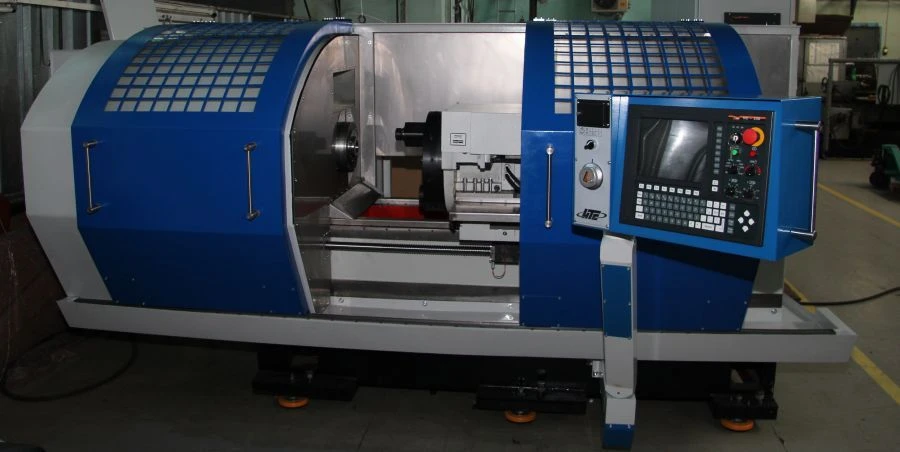

CNC Metalworking Lathe-Milling Machine ITS 250/1000 for Precision Metal Processing

CNC Metal Lathes

Manufacturer: ITS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Metal-working machine lathe-milling numerically programmed control 1.The machine is designed for cold working of metal. 2.Machine tools are designed for turning cylindrical (with a straight, stepped and curved profile), tapered and end surfaces on parts such as bodies of rotation, as well as for cutting threads: metric, modular, inch, pitchevoy and pipe tapered. 3.Processed materials: ferrous and non-ferrous metals, cast iron, plastic.

4.The machine is equipped with a CNC (numerical control) device, which minimises the operator's participation in the process of processing the part. 5.The machine is designed for 2-shift work. 6.Accuracy resource up to the first average repair-12 thousand hours 7.Service life of the machine tool is 5 years.

8.The machine has a rigid bed, on the guides of which moves the slide and tailstock (Z-axis). On the guides of the slide carriage moves the slide with a 4 or 8-position turret mounted on it (X-axis). The left y...

Specifications

Type of product according to PP RF 616

Numerically controlled metal turning machine tool

Type

Numerically controlled metal turning machine tool

Accuracy class according to GOST 8-82

Largest workpiece Ø for turning above the bed

600 mm

Maximum workpiece Ø when turning above the slide

250 mm

Largest size of workpiece to be inserted in a chuck with back centre clamping

1100 mm

Largest dimension of the cutting zone in the chuck with back-centre clamping.

960 mm

Largest dimension between spindle face and tailstock quill face (without chuck and tailstock centre)

1300 mm

Maximum longitudinal travel with tailstock

980 mm

Longest stroke of transverse movement

340 mm

Highest weight of the product to be installed in the chuck

300 kg

Maximum weight of the workpiece to be installed in centres

1500 kg

Working feed rate limits in X, Z axes

4000

X-axis rapid traverse speed 1098469:X-axis rapid traverse speed

10000

Z-axis rapid traverse speed

20000

Discreteness of motion setting in all axes

Single-sided positioning accuracy in the X axis

Single-sided positioning accuracy in the Z axis

Repeatability of positioning in X and Z axes

Spindle bore diameter

55 mm

Main drive motor power

15 kW

Highest torque on the spindle

250

Spindle speed limits

4000

Spindle speed control

stepless

Diameter of clamping chuck

250 mm

Clamp type

Manual

Diameter of tailstock quill

75 mm

Rear headstock quill travel

150 mm

Tailstock quill clamping

Manual

Locking of the tailstock

manual

Cooling system capacity

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording l

Cooling system pressure

Type of mains current

AC, three-phase

Current frequency

SBVVBG

Power supply voltage

380 V

Control circuits

24 V

Local lighting circuits

24 V

Length of overall machine with chip conveyor

5243 mm

Overall width of the machine with main console

2125 mm

Overall height of the machine with machine supports

1793 mm

Machine weight

3620 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
