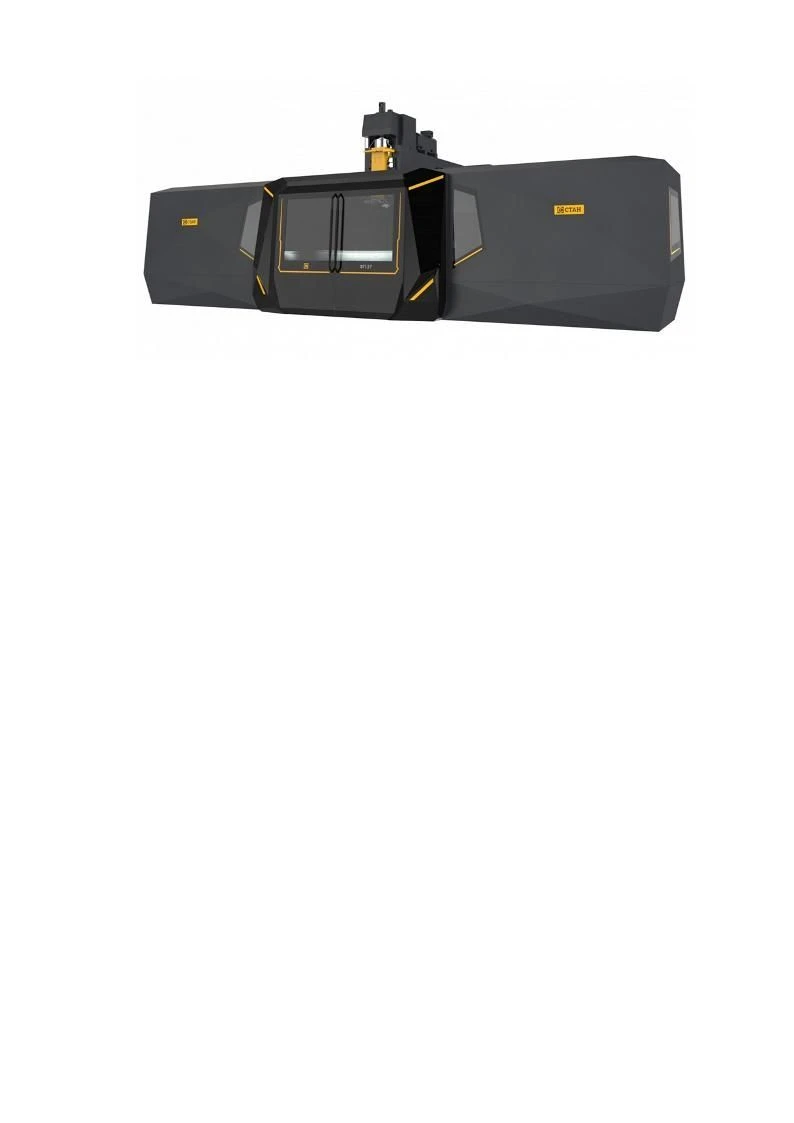

CNC Machining Center STCV 80 and STCV 50 for Advanced Manufacturing
Manufacturer:
ISZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Centre machining STCV 80 and its modification STCV 50 with a longitudinally movable table moving on the bed, mounted next to the pedestal, on the guides of which transversely to the direction relative to the table moves carriage longitudinal, on the vertical guides of which moves vertically slider carrying the main drive with a speed box and spindle device. Designed for high-speed milling of parts such as beams, ribs, spars, brackets, bodies Centre can be used for power machining of steels, heat-resistant alloys and titanium at higher cutting modes. Aluminium and its alloys can be successfully milled in the upper speed range.
Specifications
Type of product according to PP RF 616
5-axis vertical machining centers
Machine type
Machining centre STCV 80 and its modification STCV 50
Maximum torque
1200 Nm; 450
Table work surface size
800 x 3000; 500x1600 mm
Table load capacity
2000 kg
Tool cone
SK50
Maximum spindle speed
7000
Moving in the X axis
1600 mm
Moving in the Y axis
660 mm
Z-axis travel
500 mm
Speed of fast movements in X, Y / Z axes
12000 / 8000 mm/min; 16000 / 8000 mm/min
Tool magazine capacity
12 * pcs
Accuracy class according to GOST 30027
?
Control system
CNC
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
