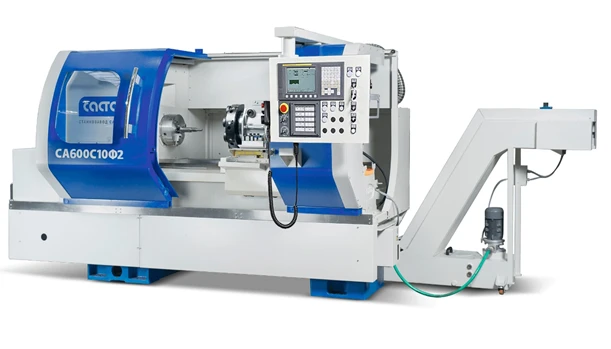

CNC Lathe Machine SA600F2 for Precision Turning Applications

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Touch lathes with OSU (Operative Control System) are the new generation of equipment that replaced the classic universal machine tools with digital indication device (DID). -OMS machines offer machining capabilities comparable to those of numerically controlled machine tools. -The latest Fanuc based operational control system provides CNC functionality with easy operator maintenance and manual operation. -Rigid design: solid cast iron bed, wide prismatic sliding guides, five precision angular contact bearings in the spindle unit, servo feed drives and ball screws instead of mechanical kinematic links - all this guarantees accuracy and reliability of the machine. The machine has modifications CA600C10F2, CA600C15F2, CA600C20F2, CA600C30F2.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

3297 mm

Width

1616 mm

Height

2170 mm

Machine weight, not more

2400 kg

Largest diameter of the workpiece to be mounted above the bed

560 mm

Largest diameter of the workpiece to be machined above the slide

320 mm

X-axis travel (transverse movement of the slide)

278 mm

Positioning accuracy

1 mm

X-axis screw diameter

32 mm

X-axis screw pitch

5 mm

X-axis drive power

1 kW

Maximum spindle speed

2800

Chuck diameter

315 mm

Diameter of the hole in the spindle for the bar

102 mm

Number of instruments

4 pcs

Tool change time

Number of tool slots

4 pcs

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Maximum pump pressure

Tank capacity

140 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
