Ceramic Disk Varistor 50V 2.5kA (8/20) for Overvoltage Protection

Manufacturer:HAKEL OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

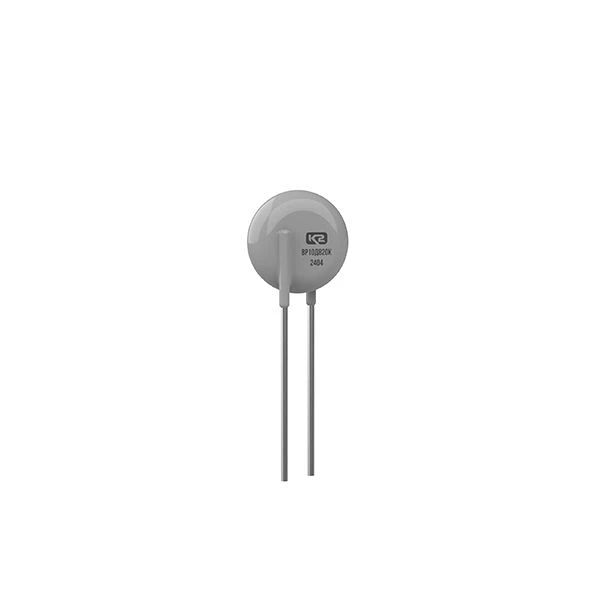

VR10D820K - varistor of KVS series, 50 V, 2.5 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Maximum disk thickness

8 mm

Maximum disk diameter

B1/B8 2100/900 MHz mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

7.4

Permissible amplitude of a single current pulse (8/20 µs)

2500 A

Maximum continuous operating voltage

65 V

Maximum AC operating voltage

SBVVBG V

Classification rated voltage at 1 mA current

82 V
