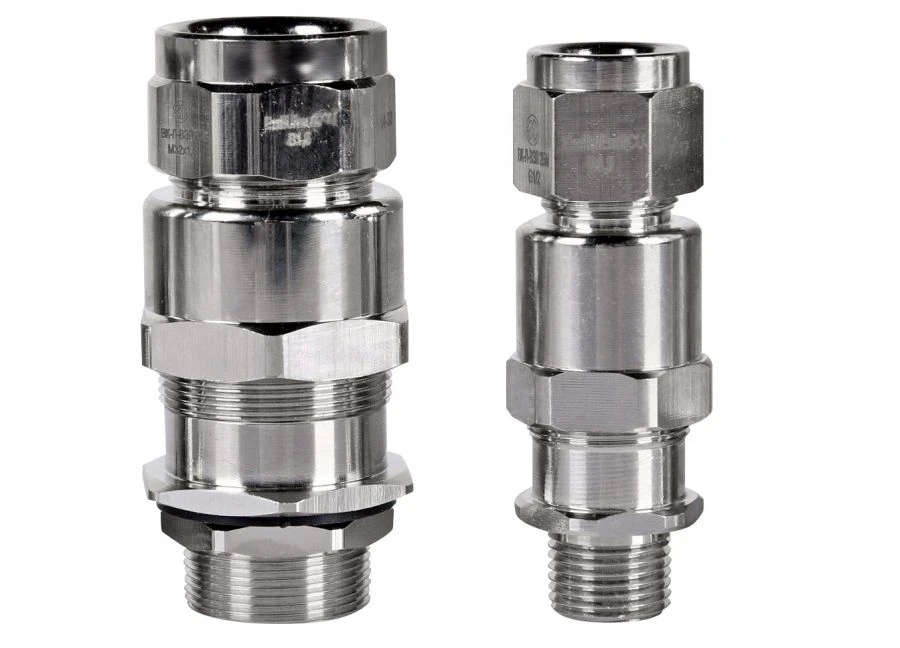

VK-K-VEL Cable Entry for Flexible Armored Cables - Model 1BM-M50-V1.5-PROM
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Cable Entry Type VK-K-VEL 1BM-M50-V1.5-PROM Available for Import

VK-K-VEL Cable Entry for Securing Flexible Armored Cables in Industrial Applications

Cable Accessories
Manufacturer: VELAN OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Cable gland type VK-X-VEL 2BM-M32-V1,5-PROM Cable gland type ??-?-??? 1??-?63-?1,5-???? Cable gland type ??-?-??? 2??-?75-?1,5-???? Cable gland type ??-?-??? 1??-?32-ExeG-?1,5 Cable gland type ??-?-??? 2??-?25-ExdG-?1,5

Description

General industrial cable glands are designed for sealing and fixing of flexible armoured cables with rubber or plastic insulation of round cross-section when they are inserted into stationary, mobile or portable electrical equipment.

Specifications

Ambient temperature
-60...55 °C
Weight
1.16 kg
Degree of protection against external influences
on special order IP67/IP68;IP66
Cable diameter without armor for threads G,K,R
19...37 mm
Cable diameter without armor
19...42 mm
Outer diameter of cable in armor
22...46 mm
Types of cable gland threads
R 1 1/2;K 1 1/2;G 1 1/2;M50x1,5
Length
135 mm
Cable entry material
anticorrosive coated steel; stainless steel; brass
Climatic version
OM1;B1.5
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
