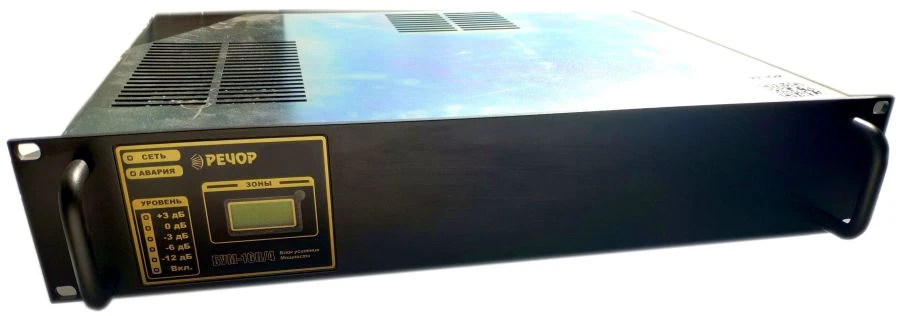

Automatic Speech Notification System "RECHOR": Power Amplifier Block 4-Zone BUM-160/4

Available for Import

Automatic Speech Notification System "RECHOR": 4-Zone Power Amplifier Block BUM-160/4 for Enhanced Communication

Security and Fire Control Devices

Manufacturer: RUSSBYT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Block of power amplification four-zone BUM-160/4 is designed to increase power and expand the number of warning zones of the automatic voice alarm system "RECOR".

Specifications

Voltage supply from AC mains

220V (+10,-15%),50Hz

Maximum power consumption from the mains ~220 V

180 W

Power consumption from ~220 V mains in standby mode

10 W

DC backup power supply voltage

30...42 V

Rated voltage of the backup power supply

NZ-150-14,5 V

Current consumed from standby power supply in standby mode

0.2 A

Maximum current consumption from the backup power source

5 A

Rated output voltage of the amplifier

100 V

Monitoring the integrity of notification lines - by comparing the continuously measured resistance of the notification line in t

Armoured glass

Rated power of the amplifier

160 W

Power reduction on 36 V standby power supply

Frequency response of amplifier, at unequal 3 dB

70...20000

Nonlinear distortion at rated output power, not more than

1 %

Adjusting the volume level in the alert mode

Adjusting the volume level in broadcast mode, levels

Unit dimensions (H x W x D), mm

90x490x430

Weight of the unit without packing, not more

10 kg

Mounting type

Desktop or 19" rack mounting

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
