Available for Import
Automated Wiring Quality Tester TEST-9110-LXI for Efficient Cable Testing
Manufacturer:
VXI-SYSTEMS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

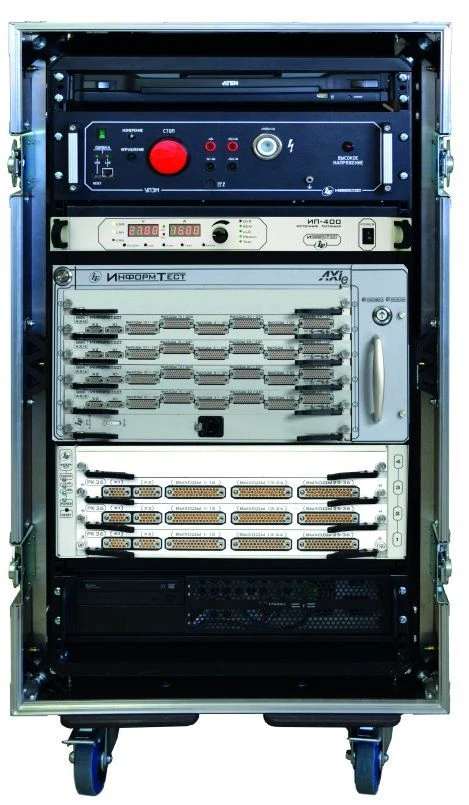

Wire installation tester TEST-9110-LXI is a modular system of automated quality control of harnesses and wiring. The system is based on the open international standard LXI, AXIe and VXI.
The system finds application in a wide range of production processes for inspection of:
-cable networks of complex and demanding objects
-unmounted printed circuit boards
- quality of assembly of electrical units before the first inclusion in critical systems
-quality of manufacturing of complex harnesses
The system finds application in a wide range of production processes for inspection of:
-cable networks of complex and demanding objects
-unmounted printed circuit boards
- quality of assembly of electrical units before the first inclusion in critical systems
-quality of manufacturing of complex harnesses
Specifications
Measurement of electrical capacitance
0.1 to 1×10^7 nF
Reproduction of DC current, mA
0.1...2000
Reproduction of RMS value of AC voltage with frequency 50 Hz
25...2500 V
DC Voltage Reproduction
0.1...3500 V
Name
Wiring tester TEST-9110-LXI
DC voltage measurement
-700...700
Measurement of DC electrical resistance in four-wire circuit
1×10^-3 to 1×10^7 ohm
Measurement of direct current electrical resistance in two-wire circuit
0.1 to 1×10^7 ohms inclusive.
Measurement of DC electrical resistance using a four-wire circuit at a given sampling current of 100 mA
0.001...30
Measurement of RMS value of AC voltage with frequency 50 Hz
1...700
Measurement of insulation resistance
1×10^5 to 1×10^10 ohms
Number of channels
0...200000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
