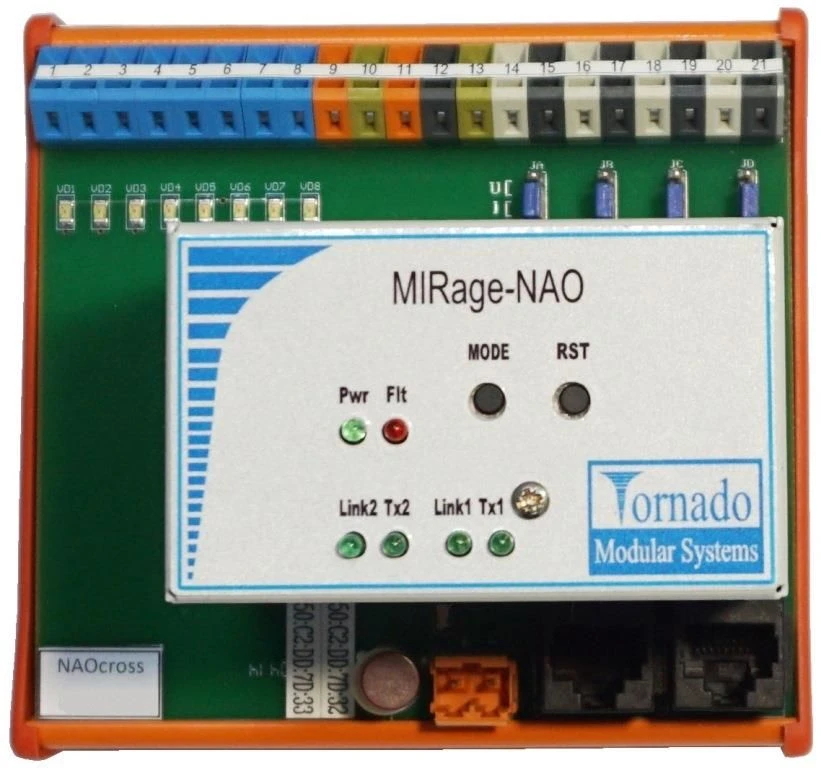

Analog Output and Discrete Input/Output Device MIRage-NAO for Signal Processing

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NAO devices are devices for output of analogue signals and input-output of discrete signals. They have 4 analogue measurement (IR) output (AO) channels designed to generate analogue voltage or current signals. In addition to the analogue channels, the devices have 8 discrete input/output (DIO) channels with independent adjustment for the direction of binary signal transmission - the DIOs can be individually assigned as either input (DI) or output (DO). The signals are generated under the control of commands transmitted over a redundant Ethernet10/100 twisted pair digital interface using the ModBus protocol. MIRage-NAO devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of discrete I/O channels

8 pcs

Number of measurement output channels

4 pcs

Interface type

Ethernet 10/100BaseTX - 2 channels

Request response time at 100 Mbit network speed, no more than

Data transfer rate

100

Data exchange protocol

Modbus TCP/UDP slave

External supply voltage (+/- 15%)

24 V

Consumption current without taking into account sensors, max.

115 mA

Galvanic insulation

Group

Overall dimensions

114x108x111 mm

Weight, not more

450 year

Mechanical design

DIN rail mounting

Wago terminal block, conductor cross-section up to

2.5 mm²

Operating temperature range

-25...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
