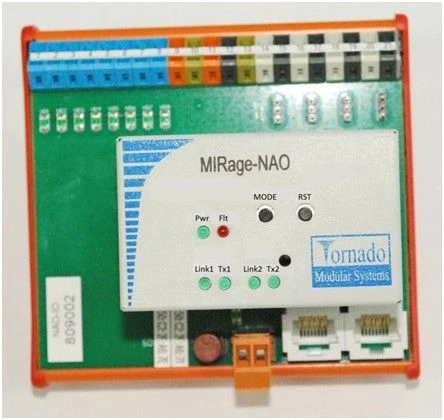

Analog Output and Discrete I/O Device MIRage-NAO for Signal Processing

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NAO devices are devices for output of analogue signals and input-output of discrete signals. They have 4 analogue measurement (IR) output channels (AO) designed to generate analogue voltage or current signals. In addition to the analogue channels, the devices have 8 discrete input/output (DIO) channels with independent adjustment for the direction of binary signal transmission - the DIOs can be individually assigned to either input (DI) or output (DO). The signals are generated under the control of commands transmitted over a redundant 10/100 twisted pair Ethernet digital interface using the ModBus protocol. MIRage-NAO devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 rj-45, +24v power supply, spring terminals for signal cable

Form factor

din-35 rail mount

DC input impedance, MOhm

200

Power Type

+24 dc

Base frequency of the processor

0.1

Number of analog control channels

4 pcs

Polling time

Data exchange protocol

modbus udp/tcp slave

Power consumption

3 W

Galvanic insulation

Group

Dimensions width

114 mm

Weight

500 year

Type of control channels

Output unified current/voltage singals

Height

108 mm

Data transfer rate

100

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
