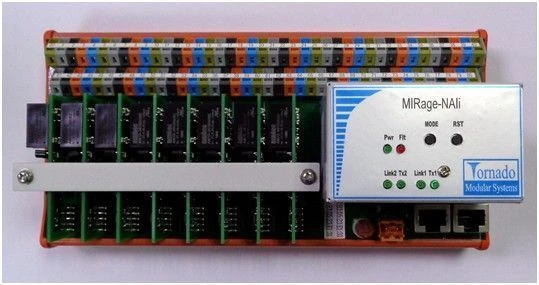

Analog Input Devices for Measuring DC Voltage, Current, and Temperature - MIRage-NAIi

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NAIi devices are designed to measure DC current and voltage, temperatures using resistance thermocouples and thermocouples of different graduations and transfer values through a redundant digital interface Ethernet 10/100 twisted pair using ModBus protocol. MIRage-NAIi devices have 8 differential input measurement channels (IRs), determined by the type of removable matching modules. The ICs are individually galvanically isolated from each other and from the system part. MIRage-NAIi devices are designed to create automated process control systems (APCS) in various industries. MIRage-NAIi devices use the central processor K1986BE92QI manufactured in the Russian Federation.

Specifications

DC input impedance, MOhm

200

Signal-to-noise ratio

Flat grinder, Specialised grinder

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

110...460

Weight

700 year

Data transfer rate

100

Type of measuring channels

input unified current/voltage signals

Dimensions width

216 mm

Galvanic insulation

Individual

Power consumption

2.5 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of measuring channels

8 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
