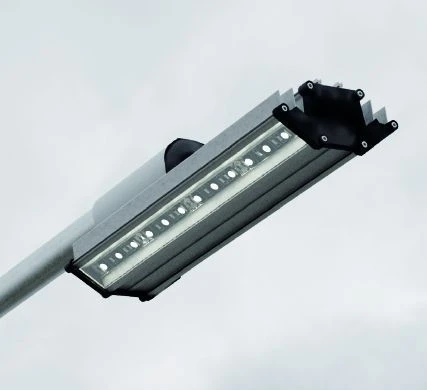

ALFA-M-90e LED Street and Highway Light for Outdoor Illumination

LED Lighting Fixtures

Manufacturer: FORTIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

LED luminaire for highways and streets ALFA-N-155e LED luminaire for highways and streets ALFA-L-78e LED luminaire for highways and streets ALFA-L-52e LED luminaire for highways and streets ALFA-N-180e LED luminaire for highways and streets ALFA-M-117e

LED luminaire for highways and streets ALFA-L-66e LED luminaire for highways and streets ALFA-L-46e LED luminaire for highways and streets ALFA-L-34e LED luminaire for highways and streets ALFA-L-25e LED luminaire for highways and streets ALFA-M-100e

Description

LED luminaire series ALFA is designed for use in outdoor lighting systems of streets, open areas and territories, motorways, urban roads and other objects of urban environment. It has a high class of protection against dust and moisture IP 66, in combination with reliable components and power sources, has high reliability and provides stable operation throughout the life cycle. The luminaire is manufactured using third-party "driver" power supplies.

The housing is specially designed for use in difficult weather conditions in regions with strong gusty winds, has low "sailing", which allows the luminaire to be used in areas with strong and gusty winds. Ambient air temperature range during operation ?40º? ??????

+40º?.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Protection class against electric current

Lower operating temperature value

-40 °C

Net weight

3.5 kg

Color rendering index (Ra)

Upper operating temperature value

40 °C

Luminous flux, lm

11250 lm

Pulsation factor

10 %

Degree of protection (IP)

Type by installation location

Street

Correlated color temperature

2700...5000 K

Height

160 mm

Width

180 mm

Length

475 mm

Housing material

Aluminum

Climatic version

UHL1

Power consumption

Flat grinder, Specialised grinder W

Power supply voltage

220 V

Type of light intensity curve

L (semi-wide)

Light distribution class

P (direct light)

Type of supply current

Variable

Power factor

0.95

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
