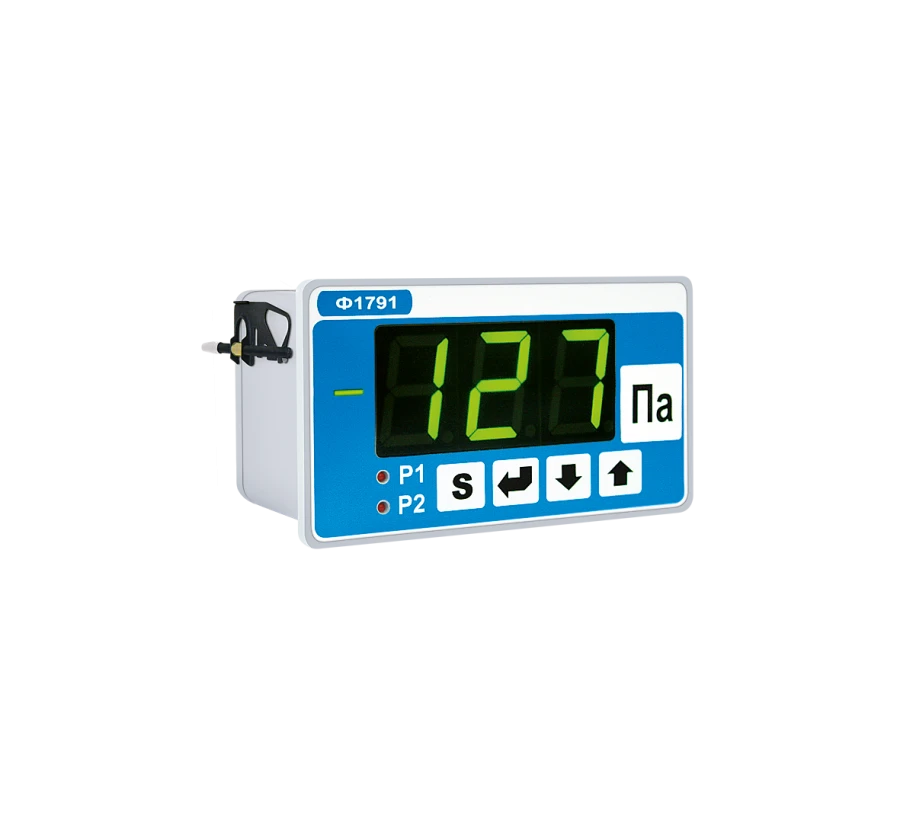

Air Pressure Measurement Device F1791 for Control Systems in Boilers and Power Plants

Pressure Measuring Instruments

Manufacturer: VIBRATOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The air pressure measuring device F1791 is used for measurement and control of air overpressure and rarefaction and can be used in control systems of boiler and CHP equipment, for control of technological parameters and emergency protection, as well as in ventilation and air conditioning systems. The device provides measurement of gauge pressure, vacuum and air pressure difference in the ranges: 0,125 kPa - 6 kPa. Mounting method - panel or protruding.

For connection of impulse lines there are 2 sockets for elastic pipes of 8 mm diameter or a nipple for welding to the pipeline. Power supply voltage of the device is 24 V DC; 24 V DC with galvanic isolation from analogue output; 220 V AC 50 Hz. The device can have up to 2 electric signalling relays.

Output signal 4 - 20 mA or RS-485 interface.

Specifications

Accuracy class

Display gauge type

напоромер; тягонапоромер, тягомер

Type of pressure to be measured

overpressure; rarefaction, pressure difference

Type according to the method of measurement information output

Indicating, digital

Assignment

Measurement and control of overpressure and vacuum, air pressure difference; indication of measurement result on digital readout, light alarm, data transmission via RS-485, formation of analogue output signal

Type depending on the operating principle

electric

Inspection interval

2 year

Electromagnetic compatibility (EMC)

III, B

Alarm devices (optional)

Light

Basic reduced error

1 %

Range reconfiguration depth

1:2

Warranty period

1.5 year

Output signal, mA

4...20

Dustproof

IP65

Execution

Shield; protruding

Output signal

4-20ma; rs-485

Number of relays

2 pcs

Nutrition

220 V

Mounting method

shielded; protruding

Measuring ranges

125...6000

Execution

Radial

Electromagnetic compatibility (EMC)

III B

Climatic designs

UHL4, TM4.1

Range reconfiguration depth

1-2 kpa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
