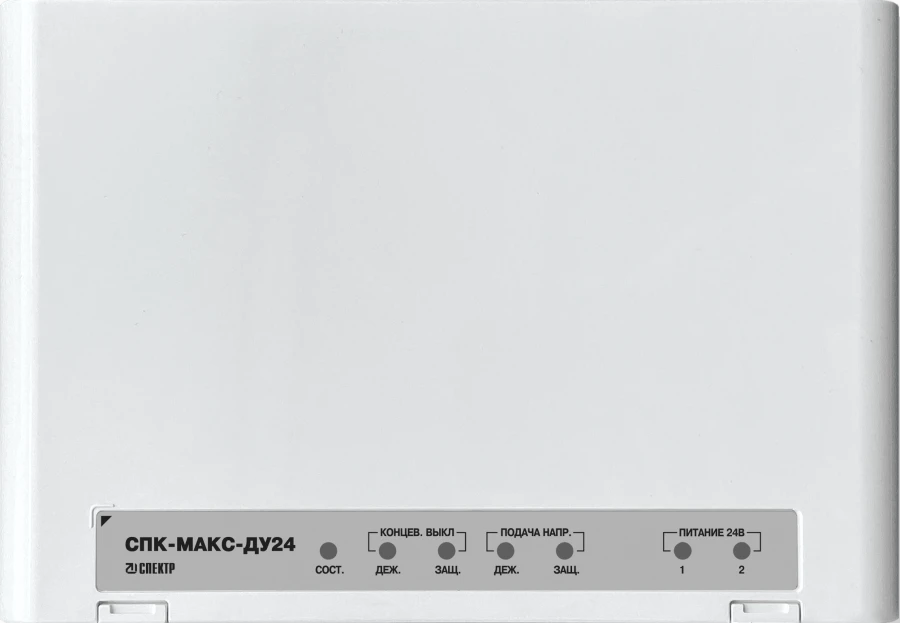

Addressable Executive Control Unit SPK-MAX-DU24 for Fire Automation Systems

Security and Fire Alarm Systems

Manufacturer: ARGUS-SPEKTR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Block executive addressable SPK-MAKS-DU24 is designed to control various fire automation valves and other executive devices as part of the automatic fire and security protection system "SPEKTR MAKS". The device has a relay output. Relay output parameters: - nominal (maximum) switching voltage - 24 (28) V; - maximum switching current - 3A. The device can control the line to the load, the line to the power source, by which this load is activated and (when controlling Smoke or Fire Valves) the valve damper position

Specifications

Degree of protection of the device shell

IP41

Device weight

450 year

Overall dimensions of the device

210x143x38 mm

Average current consumed by the device when powered from the signal line

300 µA

Operating temperature range

Minus 30 to plus 55 C
