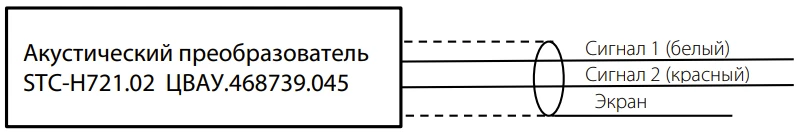

Acoustic Transducer STC-H721.02 with Pre-Amplifier

Acoustic Transducer STC-H721.02 with Pre-Amplifier

Brand: STC

$30 - $180 USD

MOQ: 50 pieces

Key Features

Operating frequency range: 200...6500 kg

AC output (undistorted) voltage (effective) when operating on 600 Ohm load: 0.4...0.5 yd³

AC output impedance: 50...70 yd³

Sensitivity of AP with standard sound conductor, mV/Pa: 300...400

Supplier Information

CRT LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from STC

Smart Logger BOX for Automatic Audio Data Recording STC-H656

$900-$3,600

Sixteen-Channel Audio Recorder with Removable Storage STC-H905.16

$1,500-$4,800

4-Channel Audio Video Recorder with Removable Storage STC-H855.4

$180-$720

High-Quality Subminiature Digital Stereo Recorder "Gnome-Nano II" STC-H713

$90-$300

Specialized Audio-Video Recorder STC-H755.2

$150-$540

Eight-Channel Audio Recorder with Removable Storage STC-H905.8

$900-$3,000

Analog Signal Recording Device STC-H786 MatchBOX

$150-$480

Eight-Channel Audio Video Recorder STC-H855.8 with Removable Storage

$900-$3,600

Smart Logger BOX STC-H605 - Autonomous Voice Recording Device

$420-$1,500

External Microphone Preamplifier STC-H736

$9-$36

Mini Digital Stereo Recorder "Gnome-Piko" STC-H650

$30-$180

Description

Acoustic transducer STC-H721.02, CVAU.468739.045 is a product with a preamplifier, made in a sealed metal case for professional non-domestic use. It is designed to convert air sound vibrations into electric current vibrations and to amplify the electric signal modulated by sound for its transmission through a two-wire cable line to the line inputs of audio equipment. Power supply of the built-in preamplifier of the STC-H721.02 product is carried out by direct current voltage of 12±2V from an external power supply.

Specifications

Operating frequency range

200...6500 kg

AC output (undistorted) voltage (effective) when operating on 600 Ohm load

0.4...0.5 yd³

AC output impedance

50...70 yd³

Sensitivity of AP with standard sound conductor, mV/Pa

300...400

AC power supply voltage is supplied by DC voltage

Armoured glass

Type of acoustic transducer

Electret

Unevenness of the frequency response with the sound conductor in the specified operating frequency range

6...21
