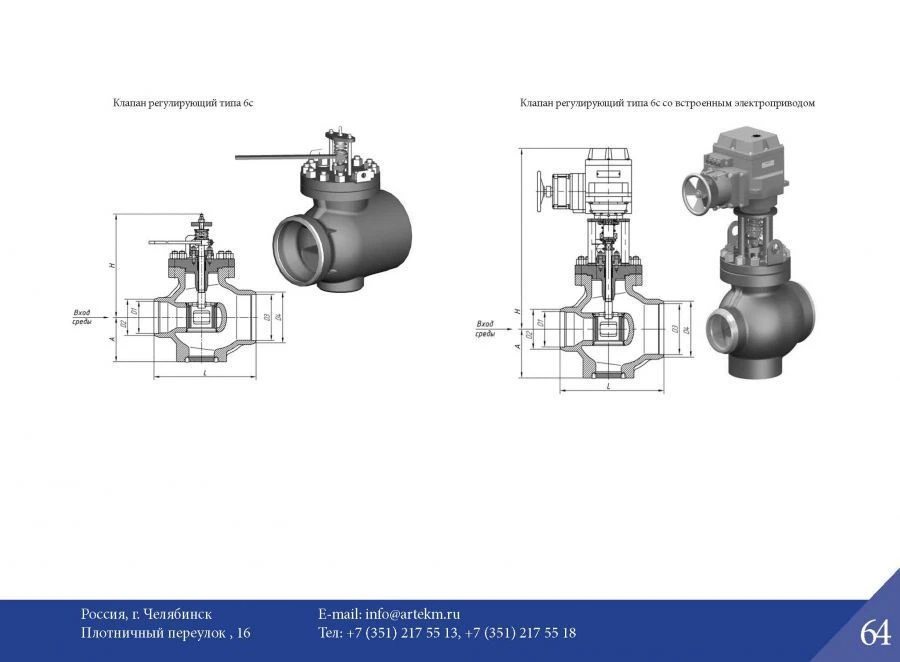

6s Series Control Valves for Regulating Flow and Pressure in Systems

Valves type 6s are designed to regulate the amount and pressure of the working medium. The working medium is steam, water. The flow rate of medium through the valve is regulated by changing the area of the cross-section, which is achieved by turning the spool relative to the seat.

The valve is controlled by electric actuator of ??? and ????. When ordering electric actuators of other manufacturers and brands (different from those listed in the table), the mass dimensions of the valve are as follows specified in the table) mass-dimension characteristics of products change.

The maximum angle of spool rotation is 90°. Adjustable passage sections in the valve are made in the form of rectangular windows in the spool and seat. Connection to pipework is welded.

It is not used as a shut-off valve. Climatic design - U, T according to GOST 15150-69. Placement category - 2, 3 according to GOST 15150-69.

Manufacturing and delivery according to TU 3740-001-86921904-2013..
