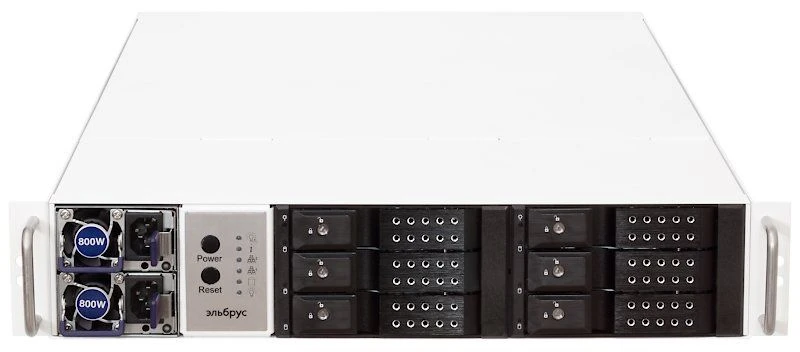

1E8-2U Server Platform for Efficient Computing in 2U Rack

Advanced Computing Devices

Manufacturer:MCST OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Server platform based on 1 Elbrus-8SV processor allows you to create computing nodes of entry-level performance in a 2U high case for installation in a standard 19? rack.
Typical applications:
- infrastructure server: files, mail, domain controller;
- Web server or entry-level application server.

Specifications

Chipset

1 Elbrus-8SV central processor; 1 KPI-2 peripheral controller

RAM

4 DDR4-2400 ECC (DIMM 288-pin) slots, up to 128GB; only DDR4 ECC Registered modules supported.

Long-term memory

6 hot-swappable 3.5? SAS/SATA bays on front (disc bin has backplate with SATA connectors); 2 2 2.5? slots inside enclosure

Video system

Integrated 2D graphics as part of the control controller

Audio system

missing, PC Speaker can be connected

External interfaces

2 Ethernet 1000Base-T network ports with RJ45 connectors; 2 USB 2.0 peripheral ports with type A connectors; 1 VGA video port with DE-15 connector; 2 USB 2.0 peripheral ports on 1 10-pin comb

Internal interfaces

1 SPI bus port on 8-pin comb for ROM updates; 1 I2C bus port on 10-pin comb for FRUID writes; 1 JTAG debug port (CPU, KPI) on 10-pin comb

Expansion slots

3 x16 PCI Express 2.0 slots (2×8 + 1×2)

Dimensions

19?/2U case, microATX motherboard dimensions 482.6×88.0×740.0 mm, weight 23 kg

Power system

Power supply from AC mains 220 V ± 10 %, 50 Hz ± 2 %; 2 power modules with capacity 800 W, consumption up to 800 W

Cooling system

3 80×38 mm fans in the middle of the main compartment; 2 40×28 mm fans in each power supply unit

Architecture

Elbrus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
