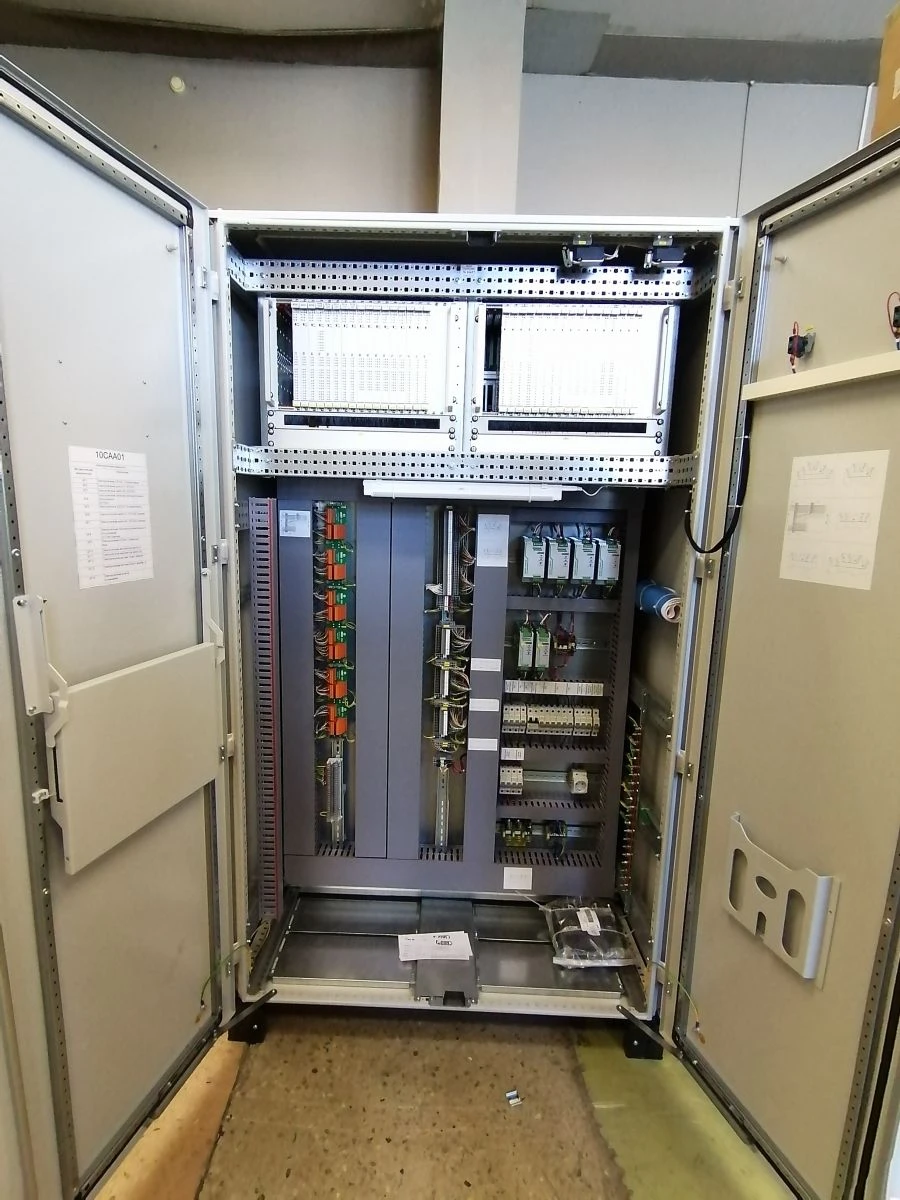

خزانة نظام التحكم والقياس TEKON نوع SHKA-U-3000

خزانة نظام التحكم والقياس TEKON نوع SHKA-U-3000

العلامة التجارية: TECON
$3,000 - $18,000 USD
MOQ: 1 pieces

الميزات الرئيسية

Height: 2000 مم
Width: 800...1200 مم
Explosion protection: explosion protection level "Ga" according to GOST 31610.0-2014 (IEC 60079-0:2011) and belong to subgroup IIC according to GOST 31610.0-2014 (IEC 60079-0:2011)
Type: cabinets of complete automatics SHKA-U-3000

المزيد من TECON

Automated Control Cabinets TEKON Model SHKA-P

خزانات التحكم الآلي تيكون نموذج شكا-ب

$1,800-$12,000
Relay Protection and Automation Cabinets TEKON Type SHE

خزائن الحماية الآلية والتشغيل TEKON نوع SHE

$3,000-$18,000
Complete Automation Control Cabinets TEKON Type SHKA-E

خزائن التحكم التلقائي الكاملة TEKON نوع SHKA-E

$1,800-$18,000
TEKON Type SHKA-U-1500 Technical Complex Cabinets

خزائن المجمعات التقنية TEKON من نوع SHKA-U-1500

$3,000-$18,000
Comprehensive Automation Cabinets TEKON Type SHKA-S

خزائن الأتمتة الشاملة تيكون نوع شKA-S

$900-$6,000

الوصف

خزانة TEKON SHKA-U-3000 للتحكم والقياس توفر حلاً متقدماً وموثوقاً للمنشآت الصناعية الكبرى والمرافق النووية. مصنوعة من مواد عالية الجودة بتصميم عملي يضمن الأداء المستقر في البيئات الصعبة.

تجمع الخزانة بين الدقة العالية والمتانة الفائقة، مما يوفر قيمة استثمارية ممتازة على المدى الطويل. مثالية للمؤسسات التي تبحث عن حلول تحكم متطورة تتحمل الاستخدام المكثف.

المواصفات

Height
2000 مم
Width
800...1200 مم
Explosion protection
explosion protection level "Ga" according to GOST 31610.0-2014 (IEC 60079-0:2011) and belong to subgroup IIC according to GOST 31610.0-2014 (IEC 60079-0:2011)
Type
cabinets of complete automatics SHKA-U-3000
Climatic version
UHL4 and UHL1 according to GOST 15150-69
Temperature class
- Ambient air temperature - without ventilation: from + 1 to + 45 C, with ventilation: from + 1 to + 55 C
Degree of protection
IP54 or IP20
Housing material
made in the form of a metal frame made of a specialized profile with collapsible side walls, roof, with or without plinth, front and rear doors
Material of manufacture
The front door can be made of solid metal, metal with a viewing window or solid glass.
Color
RAL 7035
Type of explosion protection
"i" (intrinsically safe electrical circuit) with explosion protection level "ia" according to GOST 31610.11-2014 (IEC 60079-11:2011)
Modules
Armoured glass
Material
Metal case
Current capacity
2.5.1.4 Emission of harmonic components of the consumed current from the AC electrical network must meet the norms of emission of harmonic components of the consumed current, established in GOST 30804.3.2-2013 (section 7 class A)
Size; mm
800-1200/2000/400-800 مم
Mark
TECON
Equipment
Multifunctional controller MFK3000, TCC Ex series intrinsic protection barriers, Uninterruptible power supplies, Cabinets
Assignment
2.3.1 The SHKA shall provide the following main functions: ? constant round-the-clock operation in all modes of normal operation; ? control of technological parameters and signaling of their deviations; ? remote control of equipment
Length
2000 مم
Degree of protection against external influences
2.7.1Nominal operating values of mechanical external influencing factors for the SHKA shall comply with GOST 17516.1-90 for mechanical design group M13 or M 6 (to be specified in the ToR)
By explosion protection
Armoured glass
Frequency
SBVVBG كغ
