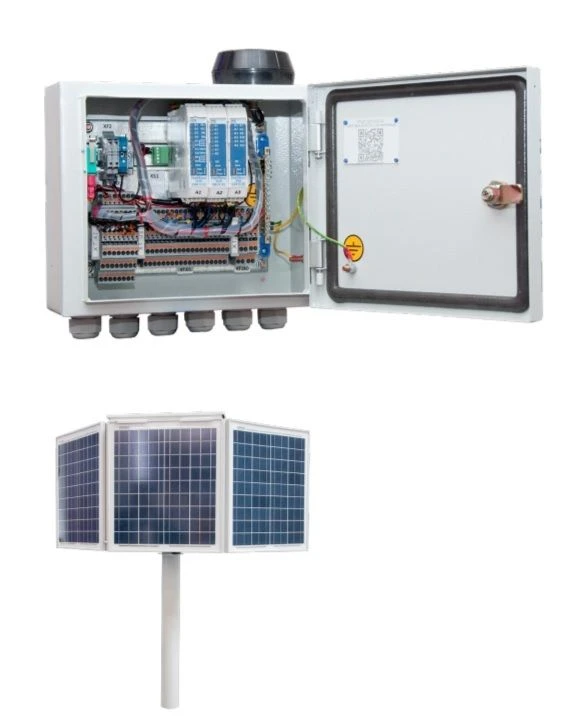

مجمع القياس عن بعد متعدد الوظائف "SSoft:Signal" MKT-V-A-SI

مجمع القياس عن بعد متعدد الوظائف "SSoft:Signal" MKT-V-A-SI

العلامة التجارية: SSoft
$900 - $3,600 USD
MOQ: 2 pieces

الميزات الرئيسية

Number of intrinsically safe analog inputs for measurement: 7, pcs.
Rated power consumption: 1, W
Overall dimensions of the MKT cabinet: 378 x 300 x 159, mm.
Power of Solar Module "SSoft:Solar": 3x15, W

الوصف

Multifunctional telemetry complex "SSoft:Signal" MKT-V-A-SI v. SmartNexus 5V Solar compact is designed for continuous remote control of process parameters of remote facilities involved in the transportation and distribution of heat and energy carriers (including natural gas), namely: collection, registration and transmission of electrical signals from sensors (temperature, pressure, flow, position, etc.), primary and secondary converters to the top-level computer via wired and wireless (GSM) communication channels. The complex meets the requirements of STO Gazprom gazoraspredelenie 2.4-11-1-2022.

المواصفات

Number of intrinsically safe analog inputs for measurement
7, pcs.
Rated power consumption
1, W
Overall dimensions of the MKT cabinet
378 x 300 x 159, mm.
Power of Solar Module "SSoft:Solar"
3x15, W
Rated supply voltage
12, ?
Hardware supported protocols
MODBUS/MQTT
Wireless communication standard
GSM 900/1800
Number of SIM card slots
2, pcs.
Number of GSM communication channels
1, pcs.
Number of intrinsically safe RS232/RS485 interface ports
1, pcs.
Number of intrinsically safe digital inputs for connection of external sensors
17, Sch.
Explosion protection marking
1 Ex IIA T5 Gb X
MCT cabinet
IP54
Weight of MKT cabinet, not more
11, kg.
Total weight of the product, not more
41, kg.
Overall dimensions of the OP-S-io-5 power supply compartment
920 x 897 x 283, mm.
Weight of OP-S-io-5 power supply compartment, not more
30, kg.
Power supply compartment OP-S-io-5
IP65
