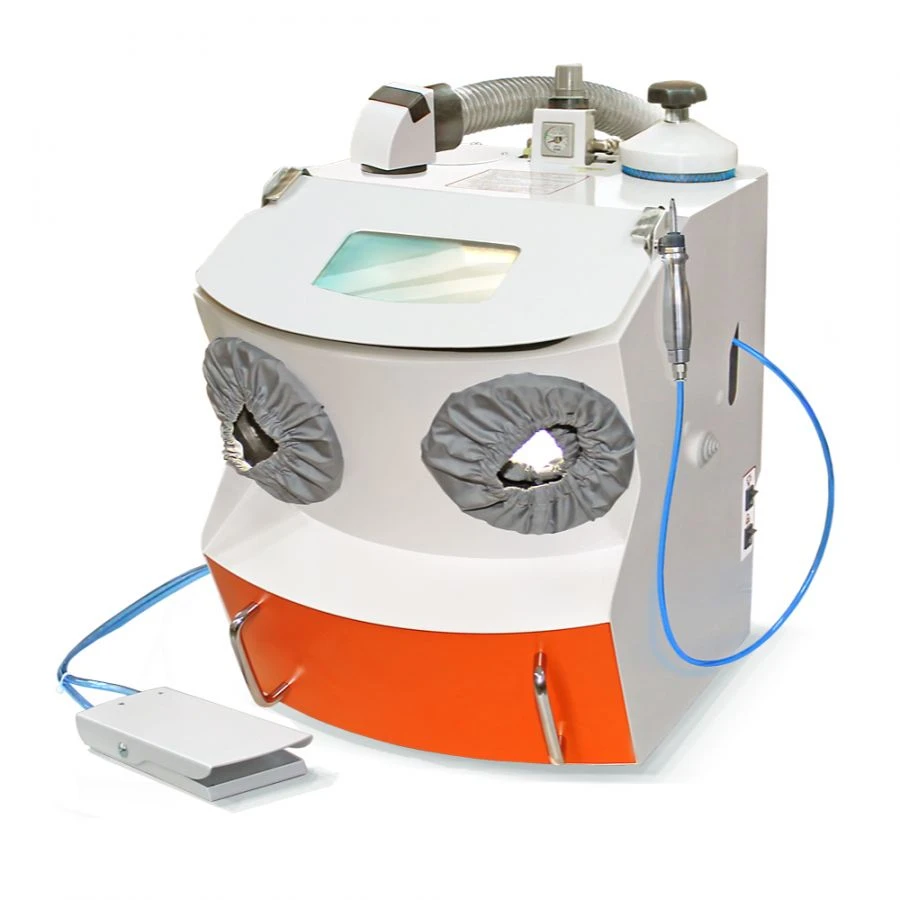

أَسُوز 1.1 أَرْت كَاست - آلة تنظيف المواد الكاشطة المتطورة

أَسُوز 1.1 أَرْت كَاست - آلة تنظيف المواد الكاشطة المتطورة

العلامة التجارية: null
$900 - $3,000 USD
MOQ: 2 pieces

الميزات الرئيسية

Width: 365 مم
Depth: 440 مم
Height: 530 مم
Supply mains voltage: 220/230 ألف م³

الوصف

ART series - modern design, spacious chamber;
unique functionality - built-in retractable sieve with a container for collecting the cleaned abrasive;
sieve mesh diameter 0.63 mm;
cleaning of the spent abrasive during operation;
coarse sieve for coarse waste;
one jet module MC 4.3 B (d 1.5 mm);
included pneumatic hammer for coarse unpacking;
fast unpacking of the opoks;
quick reloading of the jet module capacity;
pneumatic distributor for 4 devices;
pre-preparation for installation of up to 2 additional inkjet modules MC 4.3;
LED luminaire with magnetic fixation (LUX 5.0 ASOZ);
air preparation module (MPV 1.0);
pneumopedal (PVP 1.0);
pre-conditioning for connection of external extractor;
pre-conditioning for installation of cyclone AFC 1.0 NY;
synchronous switching on of the external extractor by pressing the pneumopedal;
pre-preparation for installation on the multifunctional UPZ 7.2 NEW.

المواصفات

Width
365 مم
Depth
440 مم
Height
530 مم
Supply mains voltage
220/230 ألف م³
Mains frequency
50/60 كغ
Current
8
Inner diameter of the channel (carbide nozzle)
1,5 مم
Recommended abrasive fraction
125...350 microns
Grid cell in a sieve
0,63 مم
Maximum primary load
1,3 م² مساحة سكنية
Air flow rate, max.
80 l/min
Working pressure
3…6 طن اصطلاحي
Illumination of the working area, up to
3700 قيراط
Power (LED lamp)
B1/B8 2100/900 MHz سم³
Weight
15 م² مساحة سكنية
Diameter of the hose to be connected
45 مم
Inlet connection diameter
8 مم
Power of the hood to be connected
1500 سم³
